Premium Have CNC YCB6H-63 1P/2P/3P Miniature Circuit Breaker MCB Din Rail Mount Breaking Capacity 6A/10A/16A/20A/25A/...
SKU: AINNA8668000
Product Details

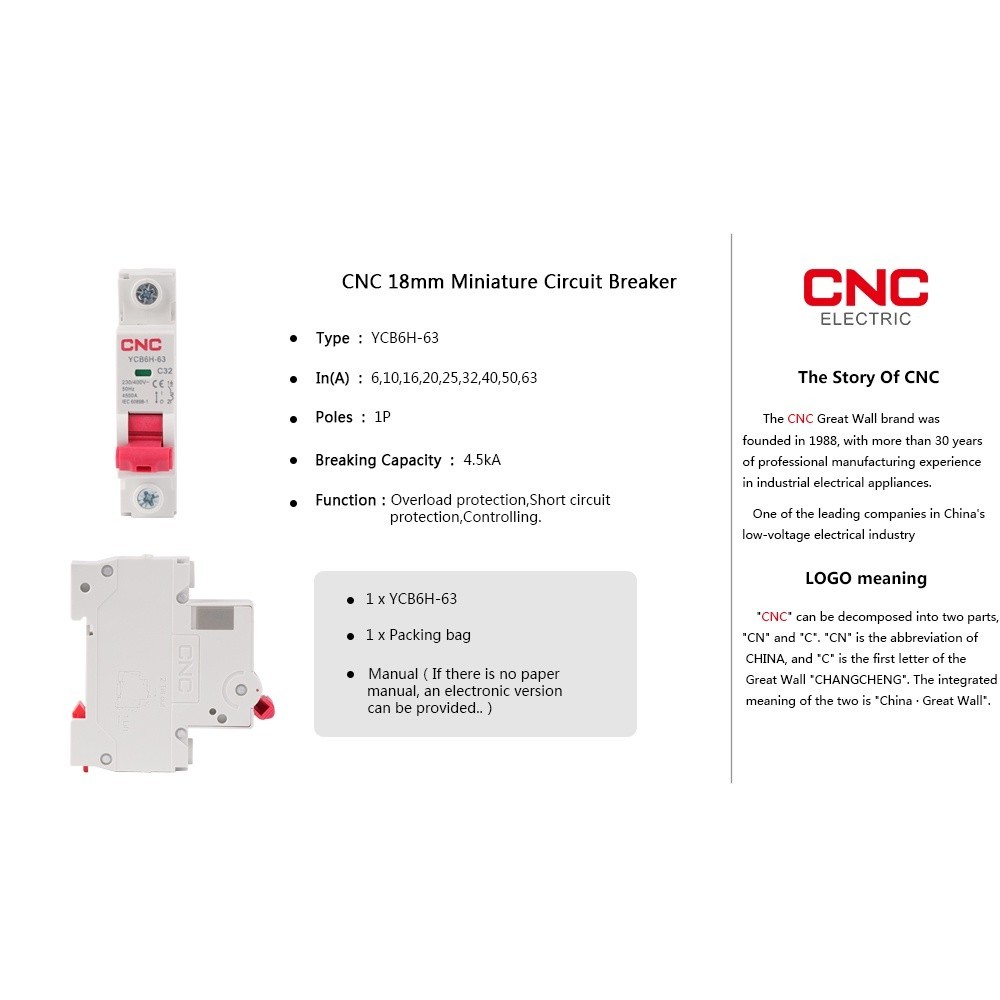

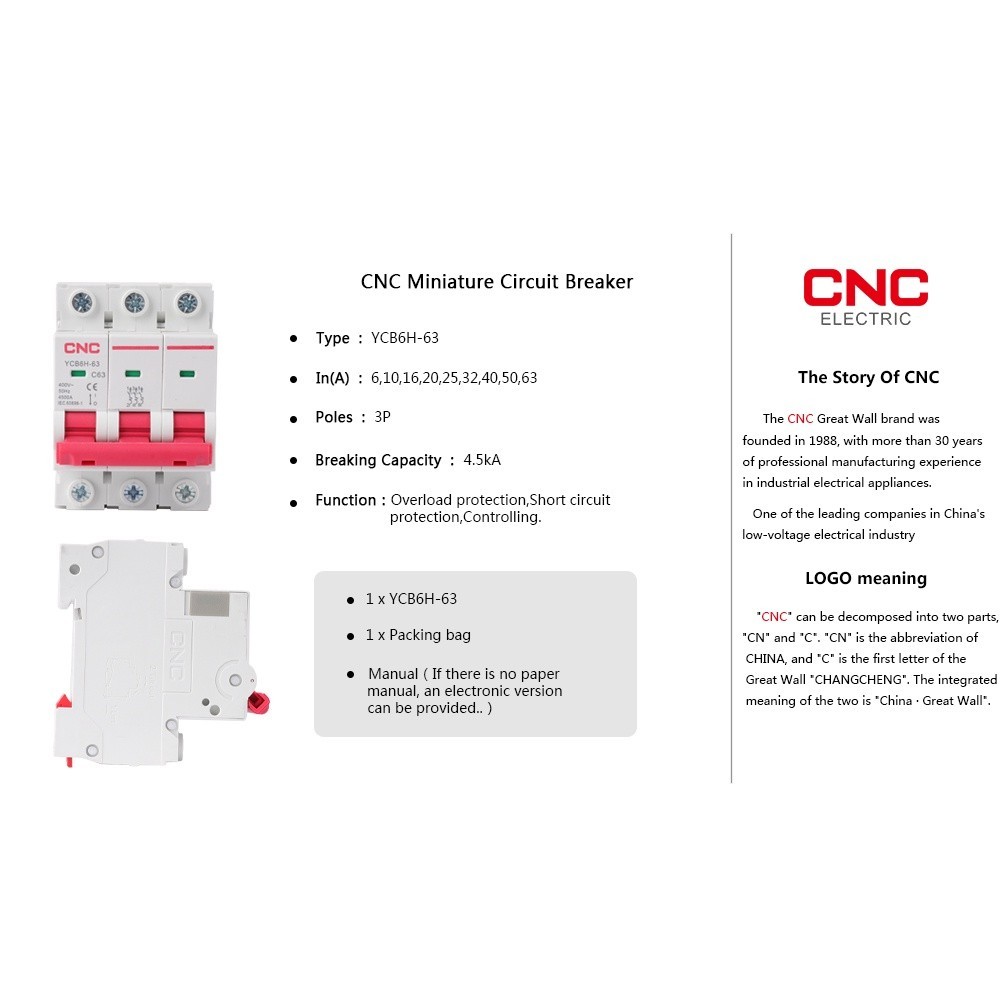

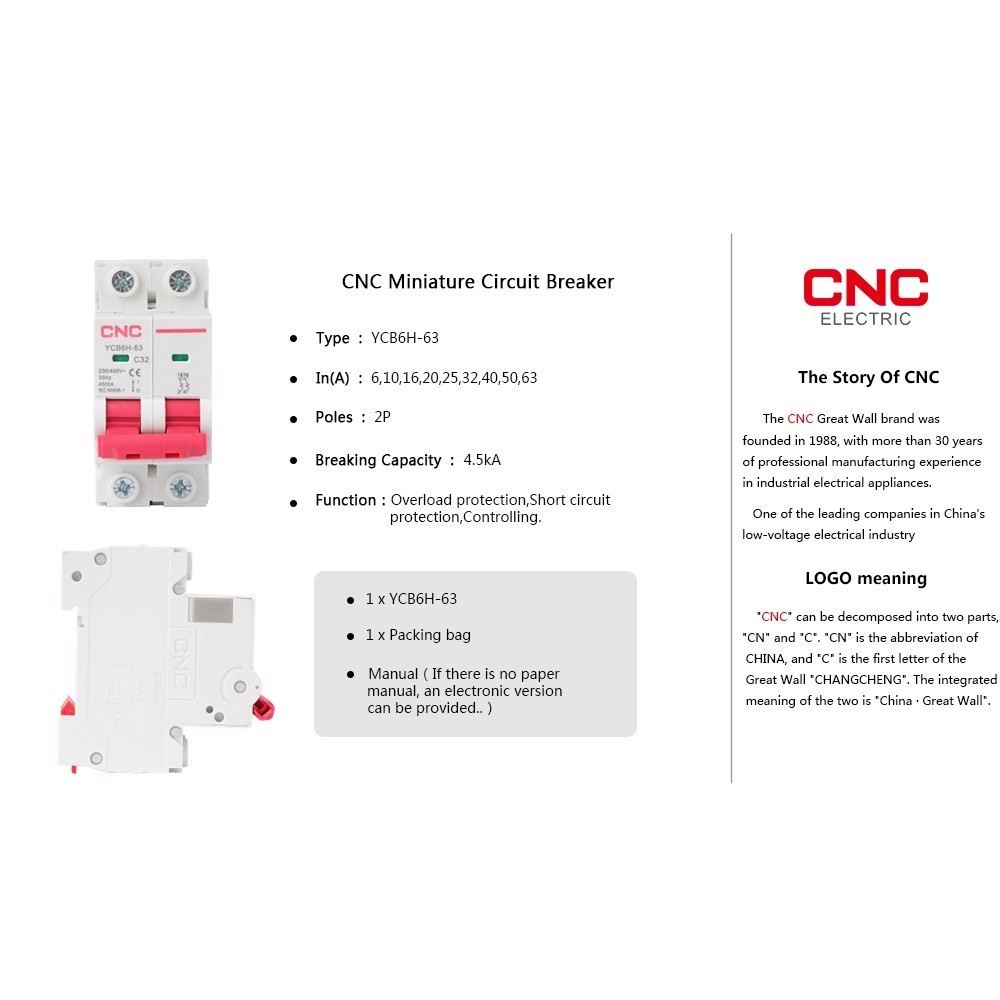

🔥 YCB6H-63 Circuit Breaker
Features
- Overload Protection: Safeguard your electrical systems from excessive current loads.
- Short Circuit Protection: Instantly cut off power in the event of a short circuit to prevent damage and hazards.
- High Breaking Capacity: Rated at 4.5kA, ensuring reliable performance in demanding conditions.
- Versatile Usage: Ideal for residential, commercial, industrial, and infrastructure projects.
- Multiple Poles and Ratings: Available in 1P, 2P, and 3P configurations, with rated currents ranging from 6A to 63A.
- Tripping Curves: B, C, and D curves for precise control and protection based on your specific needs.
Specifications
- Model: YCB6H-63
- Rated Current (A): 6, 10, 16, 20, 25, 32, 40, 50, 63

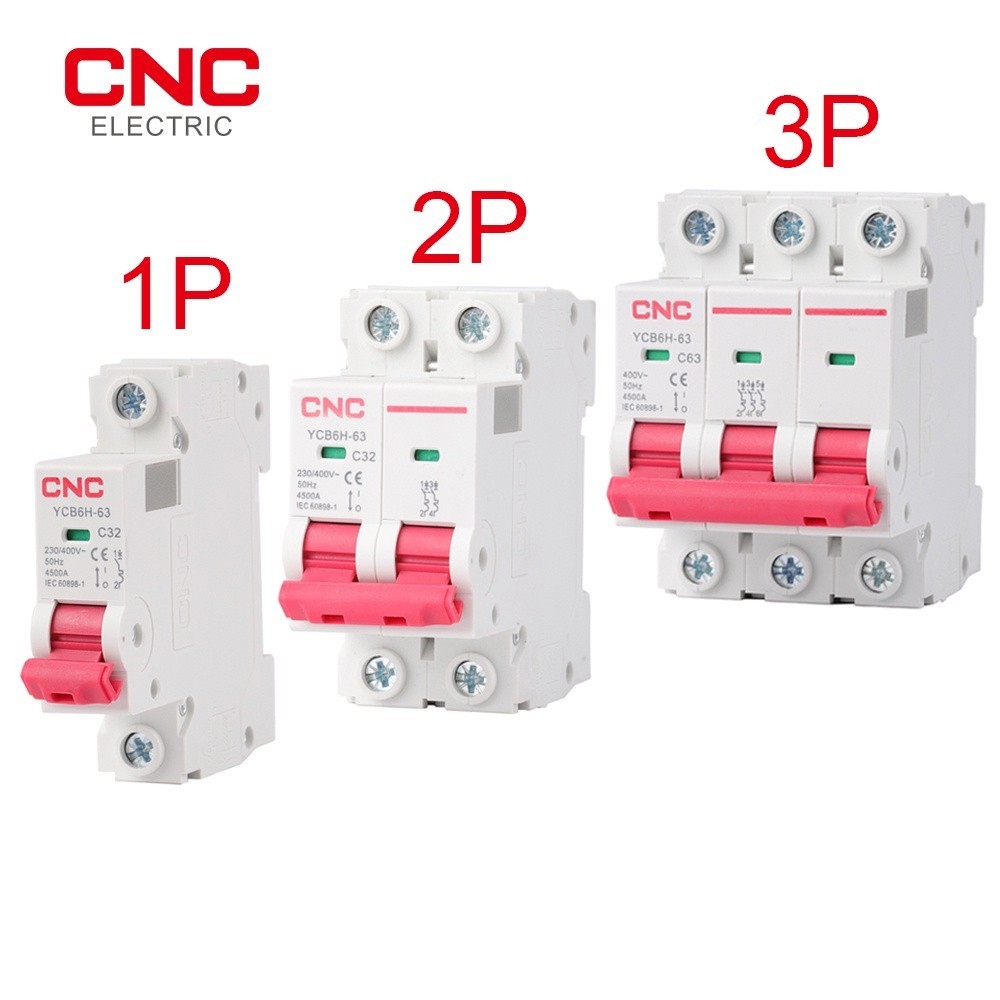

- Poles: 1P, 2P, 3P
- Breaking Capacity: 4.5kA
- Tripping Curves: B, C, D
- Standard: IEC/EN 60898-1
- Certifications: CE, CB, EAC, INMATRO
Usage Instructions
1. Install the circuit breaker in a dry and well-ventilated area.
2. Ensure the circuit breaker is securely mounted on a suitable electrical panel or distribution board.
3. Connect the input and output wires according to the electrical diagrams and local regulations.
4. Test the installation before putting it into operation to ensure all connections are secure and the breaker functions correctly.
Package Includes
- 1 x YCB6H-63 Circuit Breaker
- Installation and User Manual
Product Care Instructions
1. Clean the circuit breaker periodically with a dry cloth to remove dust and debris.
2. Avoid exposing the circuit breaker to excessive moisture, heat, or corrosive substances.
3. Perform regular maintenance checks to ensure the breaker is functioning properly.
4. Consult a qualified electrician for any repairs or replacements.
