Versatile Have DZ30LE DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker Over Short Leakage Protection RCBO ...

🔥 Advanced Circuit Breaker – Ultimate Home and Commercial Protection

Experience unparalleled safety and reliability with our Advanced Circuit Breaker. Designed to provide comprehensive protection against a wide range of electrical hazards, this device is a must-have for any household or commercial setup.

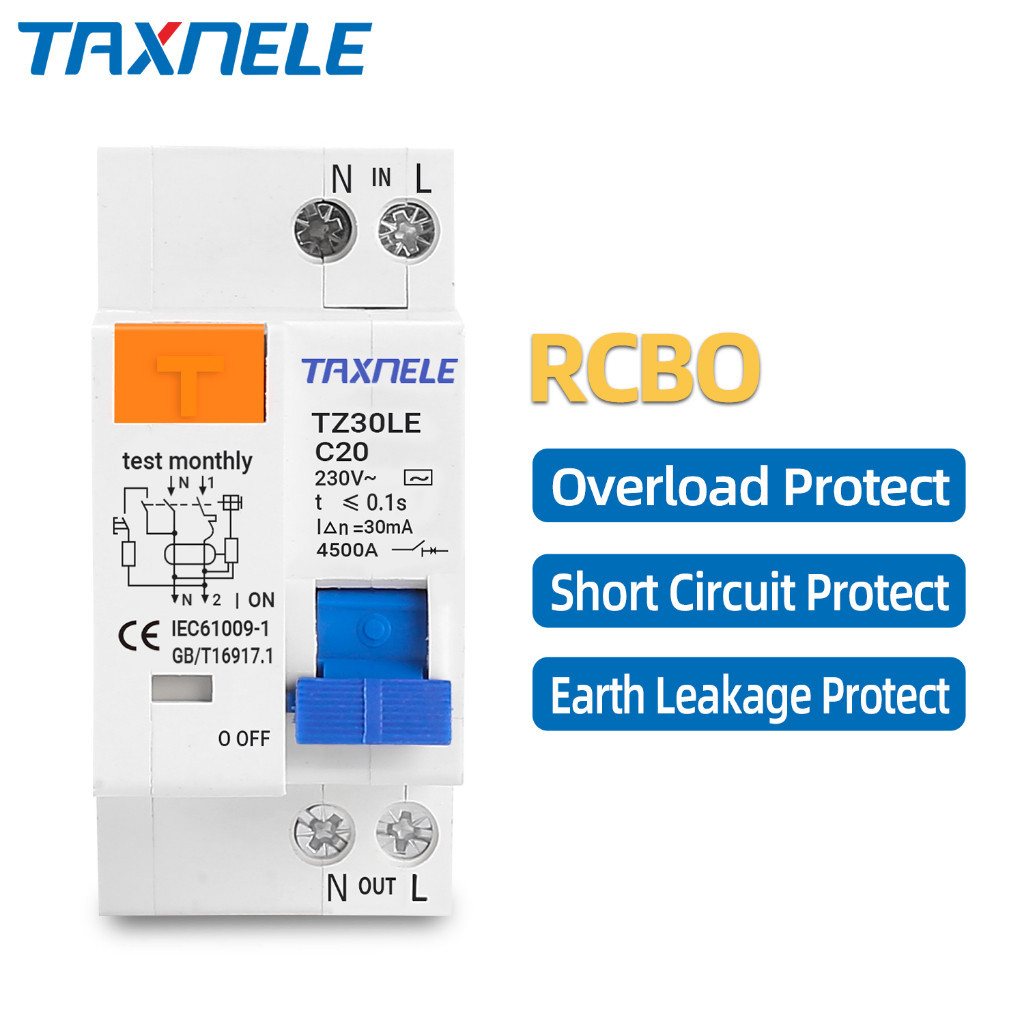

Features

• Comprehensive Protection: Guards against earth fault/leakage current, short-circuit, overload, and provides isolation.

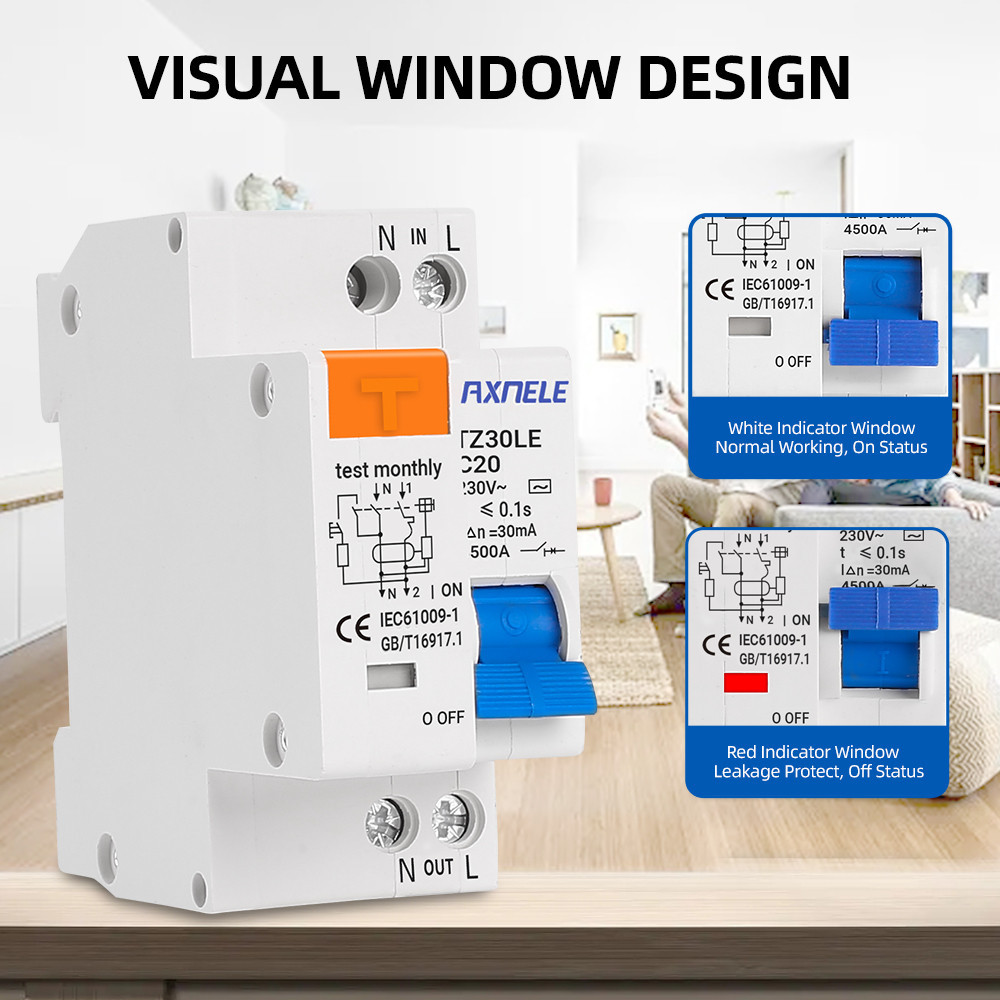

• Contact Point Indication: Clearly indicates the status of contact points for easy monitoring.
• Human Safety: Protects against indirect and direct contact by human body.
• Equipment Safety: Safeguards electric equipment against insulating failure and over-voltage.
• Advanced Design: Equipped with switched neutral and phase poles.
• High Capacity: Rated short-circuit capacity of 4.5KA ensures durability and reliability.

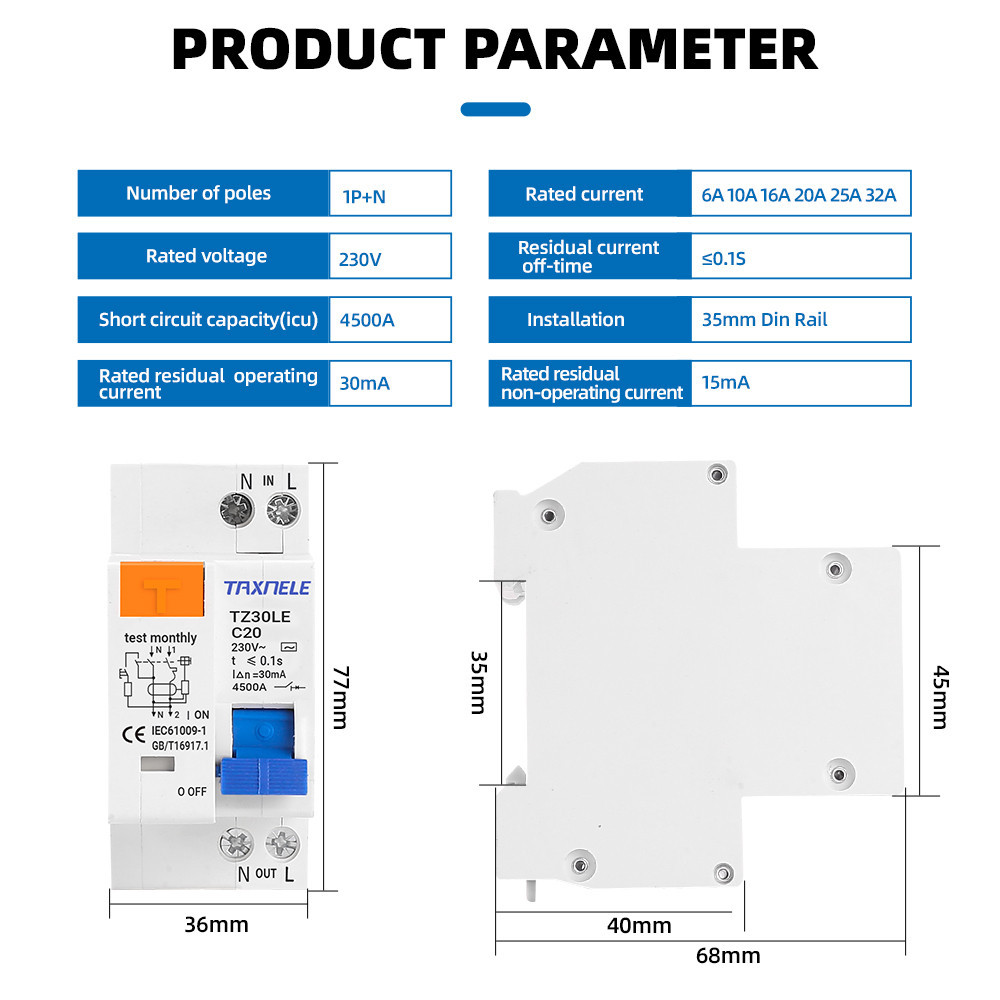

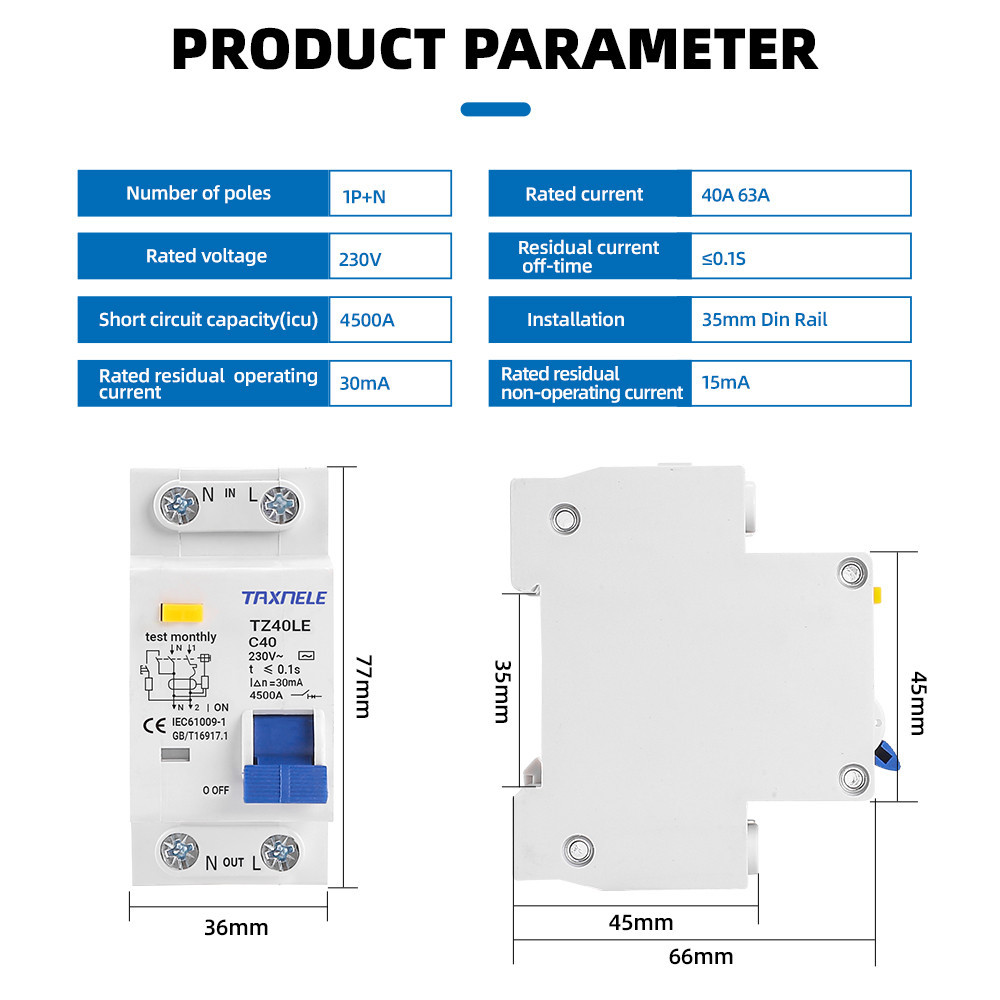

Specifications

• Type: Electronic
• Residual Current Characteristics: AC
• Pole No.: 1P+N
• Tripping Curve: B, C, D
• Rated Short-Circuit Capacity: 4.5KA
• Rated Current (A): 10, 16, 20, 25, 32, 40, 63
• Rated Voltage: 230V AC
• Rated Frequency: 50/60Hz
• Rated Residual Operating Current (mA): 0.03, 0.1, 0.3
• Tripping Duration: Instantaneous ≤ 0.1s
• Electro-mechanical: Pillar terminal with clamp
• Terminal Connection Height: H1 = 16mm, H2 = 21mm
• Over-voltage Tripping: 280V ± 5%
• Connection Capacity: Flexible conductor 10mm², Rigid conductor 16mm²
• Installation: On symmetrical DIN rail 35mm, Panel mounting

Package Includes

• 1 x Advanced Circuit Breaker
• 1 x S2 Shunt Tripper
• 1 x U2+O2 Over-voltage and Under-voltage Tripper

Usage Instructions

To install and use your Advanced Circuit Breaker:

1. Ensure the circuit is powered off before installation.
2. Mount the breaker on a symmetrical DIN rail or panel.
3. Connect the terminals according to the connection capacity specifications.
4. Test the contacts and tripping function to ensure proper operation.
5. Power on the circuit and monitor the breaker for any signs of malfunction.

Product Care Instructions

• Regularly inspect the terminals for corrosion or loose connections.
• Clean the breaker using a dry, lint-free cloth.
• Avoid exposing the breaker to extreme temperatures or moisture.
• If the breaker trips frequently, consult a professional electrician.
