Essential Must Pcbfun 0.96 Inch Color Screen Low Voltage Power Supply Version 9 1 Current Meter Multifunction DC Vers...

🔥 Introducing the Comprehensive Real-Time Monitoring Meter

Features:

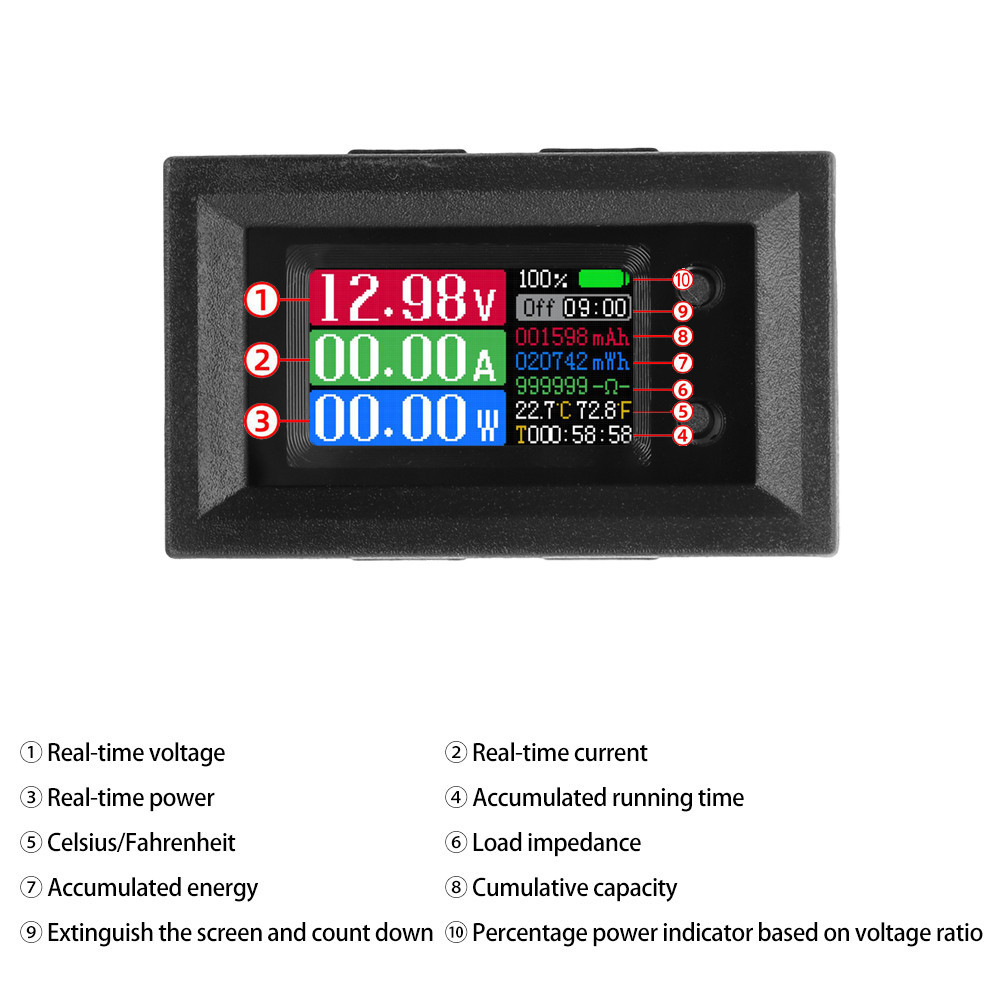

• Multi-Parameter Display: Simultaneously measures and displays voltage, current, power, impedance, capacity, energy, temperature, time, and power percentage.

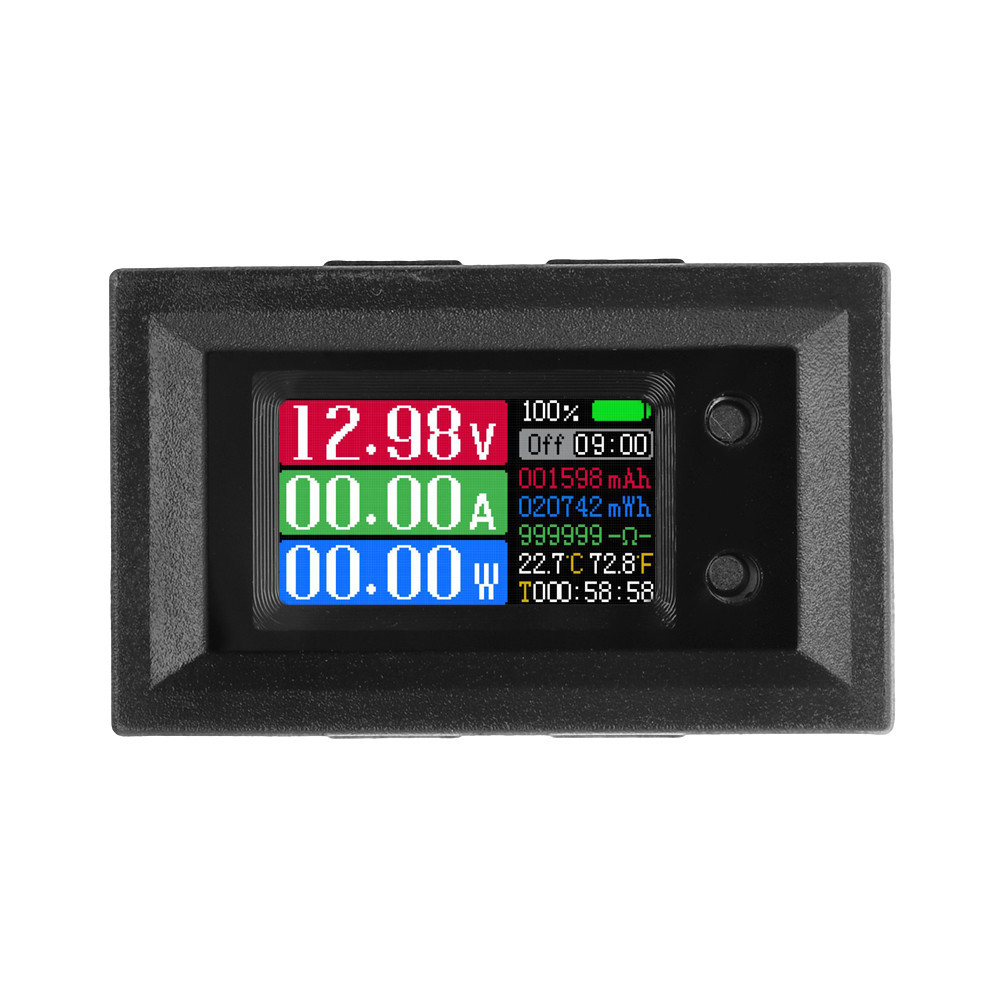

• High-Definition Color Screen: Equipped with a 0.96-inch high-resolution color display, ensuring clear and accurate readings even in bright or dim environments.
• Fine Adjustment: Customize voltage and current display values to meet personalized needs and application scenarios.
• Intelligent Data Management: Zeroing cumulative data and automatic zeroing without load to avoid error accumulation.
• Smart Power Management: Calculate the current percentage of remaining power based on a voltage reference, aiding in efficient charging cycle planning.

Specifications:

• Working Voltage: DC4~30V (do not over-voltage power supply)
• Voltage Measurement Range: DC0~100V (Error ±1.00V, 0.1V jumping)
• Current Measurement Range: Unidirectional, 0.00A ~ 10.00A (Error ±0.1A, 0.03A jumping)
• Power Measurement Range: 00.00~1000W
• Impedance Display Range: 0~99999Ω (non-internal resistance)
• Capacity Measurement Range: 0~999999kAh
• Energy Measurement Range: 0~999999kWh
• Temperature Sensor: Column waterproof probe NTC 10K 3950 1% sensor, total length about 1 meter
• Temperature Measurement Range: -40~120℃ (external temperature measured by NTC sensor)
• Time Measurement Range: 0~999:59:59 (hours:minutes:seconds)

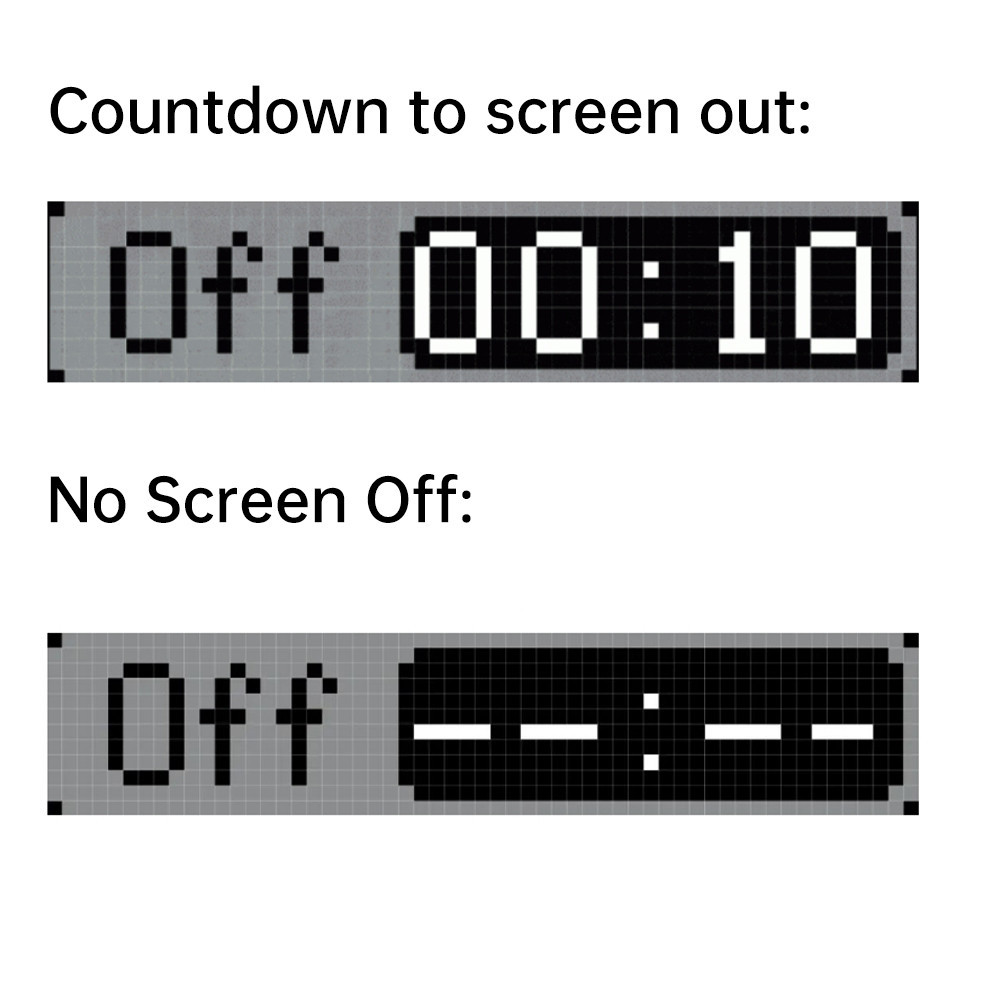

• Standby Energy Consumption: 10mA (measured by DC12V)

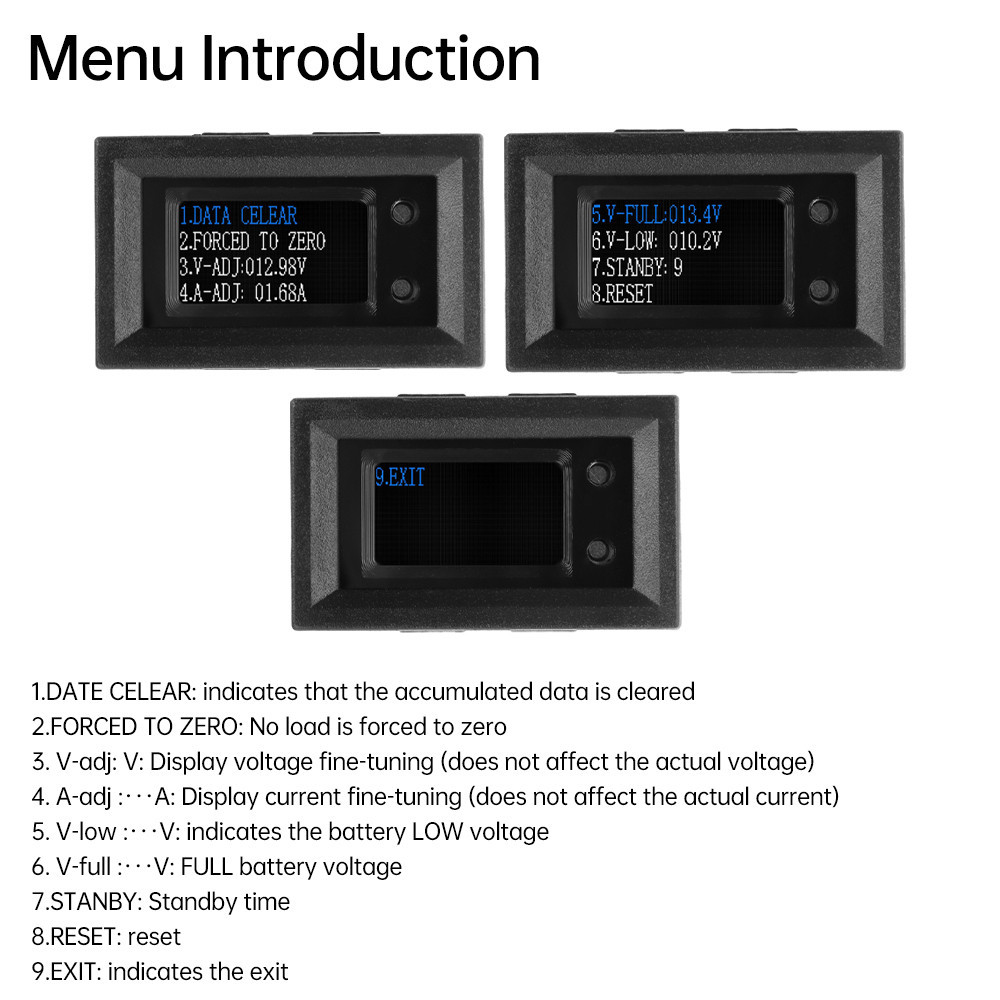

• Accumulated Data Zeroing: Supported
• No-Load Forced Zeroing: Supported
• Voltage Display Fine-Tuning: Supported
• Current Display Fine-Tuning: Supported
• Percentage Power Display: Percentage power based on voltage reference (manually set full power and low power voltage)
• Meter Size: 47.59×28.67×25.33mm
• Mounting Hole: 45×26mm

Usage Instructions:

1. Connect the meter to your power source, ensuring the voltage is within the DC4~30V range.

2. Power on the meter and wait for it to initialize.

3. Use the fine-tuning functions to adjust the display values as needed.

4. Monitor the various parameters displayed on the high-definition color screen.

Package Includes:

• Meter head × 1
• Wire × 2
• NTC sensor × 1

Product Care Instructions:

1. Avoid exposing the meter to extreme temperatures or humidity.

2. Clean the meter with a soft, dry cloth to prevent scratches.

3. Store the meter in a dry and cool place when not in use.
