Durable Premium Din Rail Single Phase Wattmeter Power Consumption Watt Electronic Energy Meter kWh 80A 230VAC 50Hz Mu...

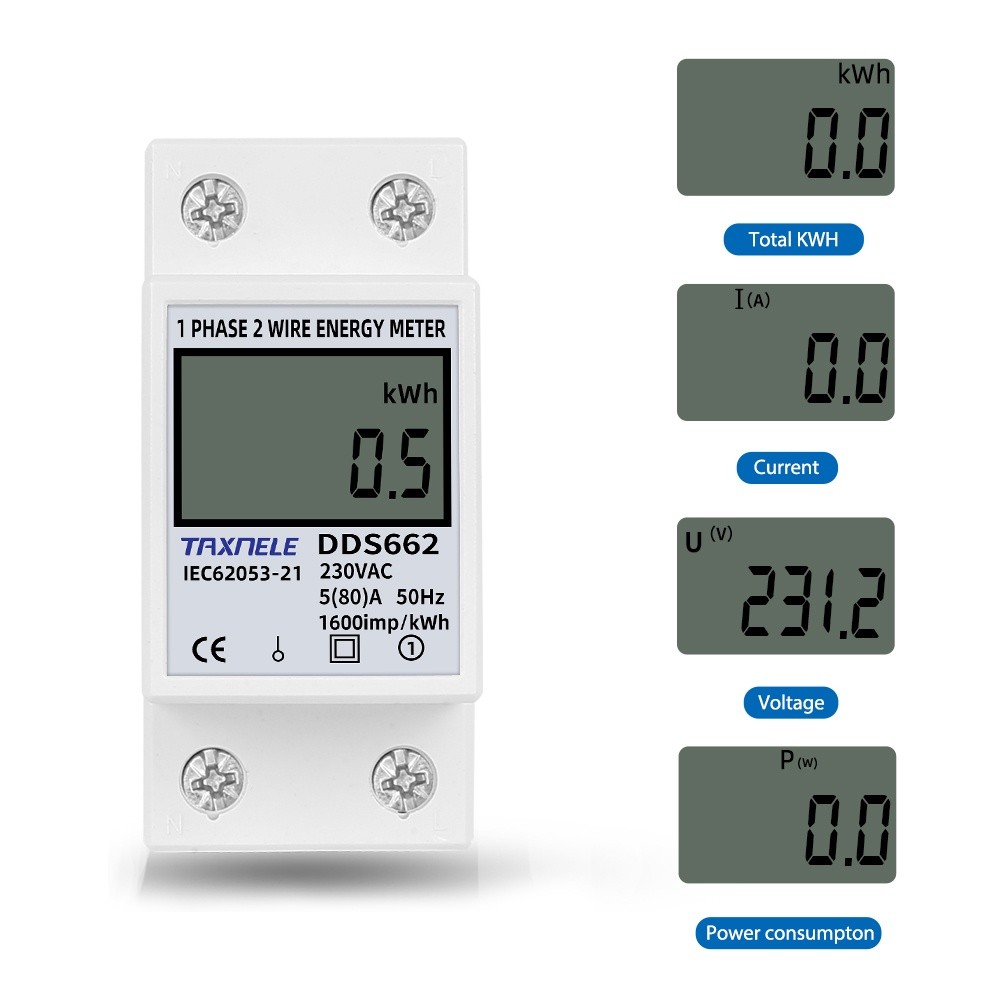

🔥 DDS662 Digital Electricity Meter

Features

• High-precision electricity measurement for reliable monitoring
• First-grade accuracy ensures precise readings
• Compact design for easy DIN rail installation
• LCD display with backlight for clear visibility in all lighting conditions

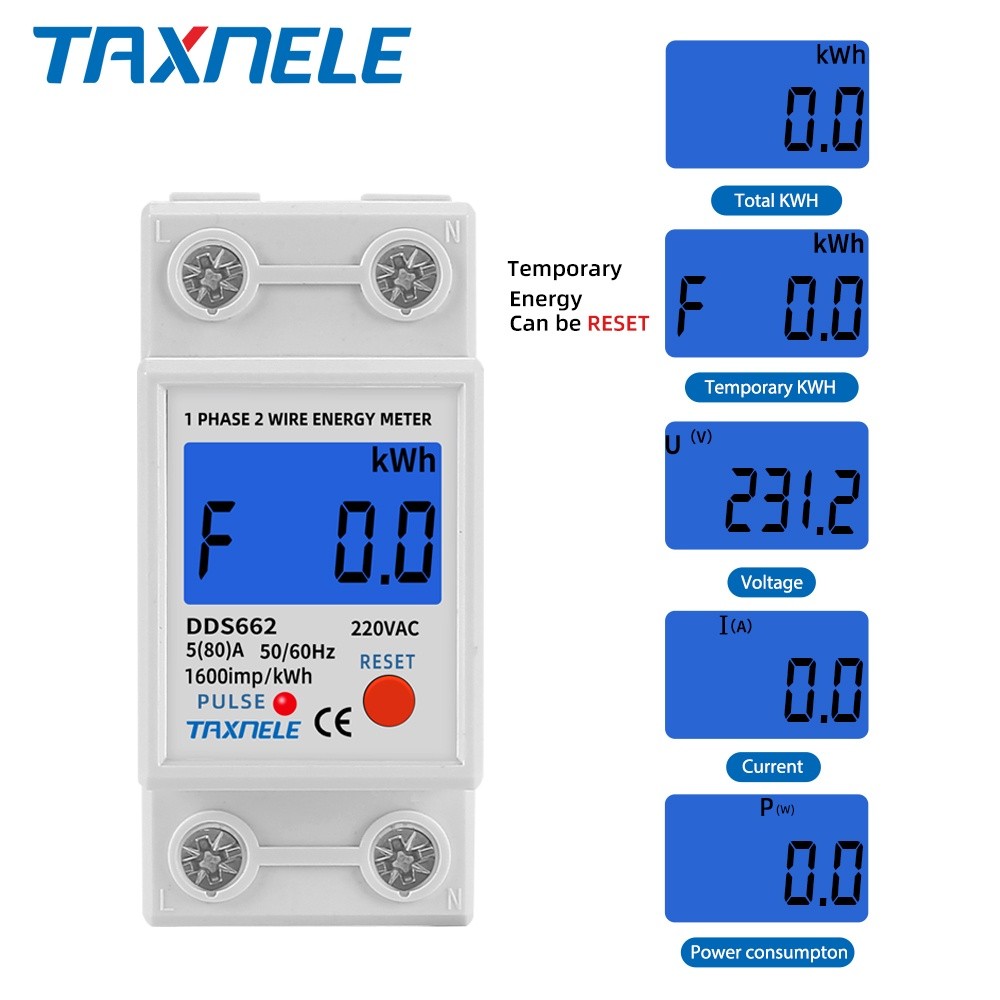

• Multi-functional display: electricity, voltage, current, frequency, and power factors
• Wide operating temperature range for versatile use

Specifications

• Material: Plastic
• Model: DDS662
• Accuracy: First Grade
• Reference Voltage: 220V/230V 50/60Hz
• Reference Current (Max. Current): 5(80)A
• Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
• Display: LCD Backlight / LCD Display
• Installation: 35mm DIN Rail
• Wiring Method: Up-out and down-in/up-in and down-out
• Power: 17000W
• Environment Temperature: -20°C to +50°C
• Pole Width: 17.5mm/0.7in
• Voltage: 200-250VAC
• Current: 0.1-80A
• Energy: 0.1-99999.9 KWH
• Power: 0.1-17000W

Usage Instructions

For optimal performance, ensure the meter is installed on a 35mm DIN rail. Connect the wiring according to the specified method (up-out and down-in/up-in and down-out). Power the meter within the specified voltage range for accurate readings. The LCD display will show electricity, voltage, current, frequency, and power factors.

Package Includes

• 1 x DDS662 Digital Electricity Meter
• Installation Guide

Product Care Instructions

To maintain the performance and longevity of the DDS662 Digital Electricity Meter:

• Avoid exposing the meter to extreme temperatures or humidity
• Keep the display clean and free from dust and debris
• Ensure proper ventilation around the installation area
• Refer to the installation guide for detailed maintenance instructions
