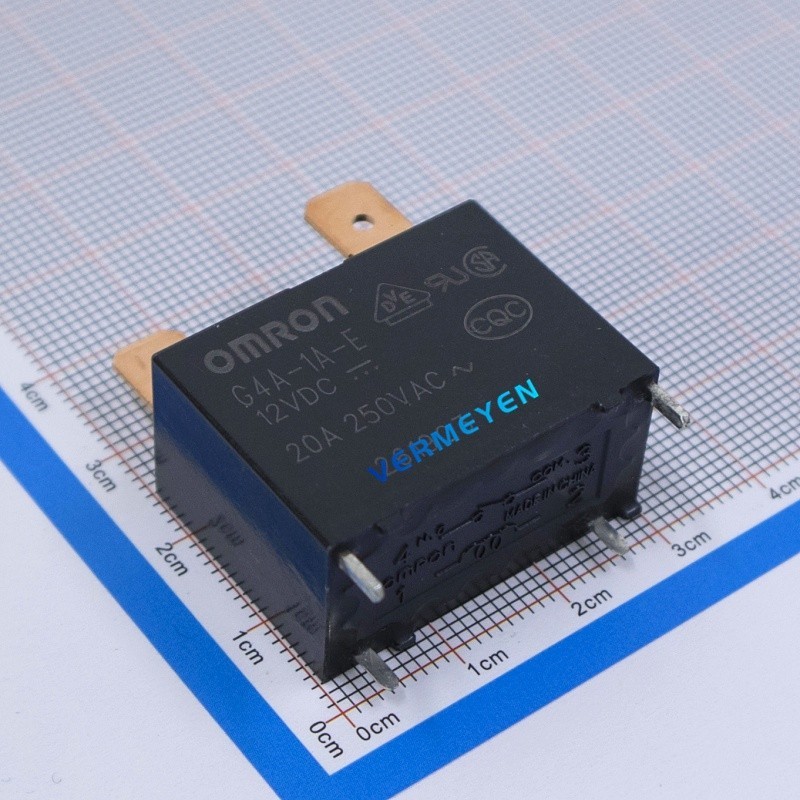

Versatile Must Relay G4A-1A-E-12VDC 4PIN DC12V Janpanomronrelay
SKU: AINNA8929000
Price
RM 118.72
Stock
1 units
Product Details
🔥 G4A-1A-E DC12V Relay: The Reliable Choice for Your Electrical Needs
Features
- High Vibration Resistance: Withstands 10 to 55 to 10Hz single amplitude 0.75mm (double amplitude 1.5mm)
- Low Power Consumption: Only 0.9W, making it energy-efficient
- Quick Operating Time: Responds in 20ms or less
- Robust Insulation: Insulation resistance of 1000 Mohm or more (measured at DC500V)
- Wide Operating Temperature Range: Functions efficiently from -20°C to +60°C
Specifications
- Operating Voltage: 70% or less
- Contact Materials: Ag alloy (Cd-free material)
- Rated Current: 20A
- Maximum Switching Capacity: 5000VA
- Maximum Contact Current: 20A
- Coil Inductance: 1.1H
- Coil Rated Voltage: DC 12V
- Weight: About 23g
- Withstand Voltage: AC4500V 50/60Hz 1min (same polarity between contacts) AC1000V 50/60Hz 1min
- Terminal Type: Load contact terminals / # 250, Coil terminal / PCB terminal
- Rated Current (At coil temperature +23°C): 75mA ± 10%
Usage Instructions
1. Connect the load contacts to your circuit using the #250 terminals.
2. Connect the coil terminal to your PCB.
3. Ensure the operating ambient temperature is between -20°C and +60°C, avoiding freezing and condensation.
4. Test the relay to ensure proper operation.
Package Includes
- 1 x G4A-1A-E DC12V Relay
Product Care Instructions
- Avoid exposure to extreme temperatures, humidity, or corrosive environments.
- Handle the relay with care to avoid damaging the terminals.
- Regularly inspect the contacts for signs of wear or damage.
