Quality Must Pcbfun Dc12v Car Time Delay Relay Module Trigger On/off Switch 20℃ ~ 70℃ Durable

🔥 Pcbfun Dc12v Car Time Delay Relay Module Trigger Delay On/off Switch Module -20℃ ~ 70℃

Features:
1.High quality shell, dustproof and flame retardant.
2.Automotive modification parts
3.Time is optional, you can choose according to your own needs.
4.Easy to operate and can automatically close at a fixed time
5.Widely used, such as exhaust fans, engines, cooling fans, lighting, navigation, media sound effects, delayed lifting of doors and windows, and other automotive circuit power-off delay control
Parameters:

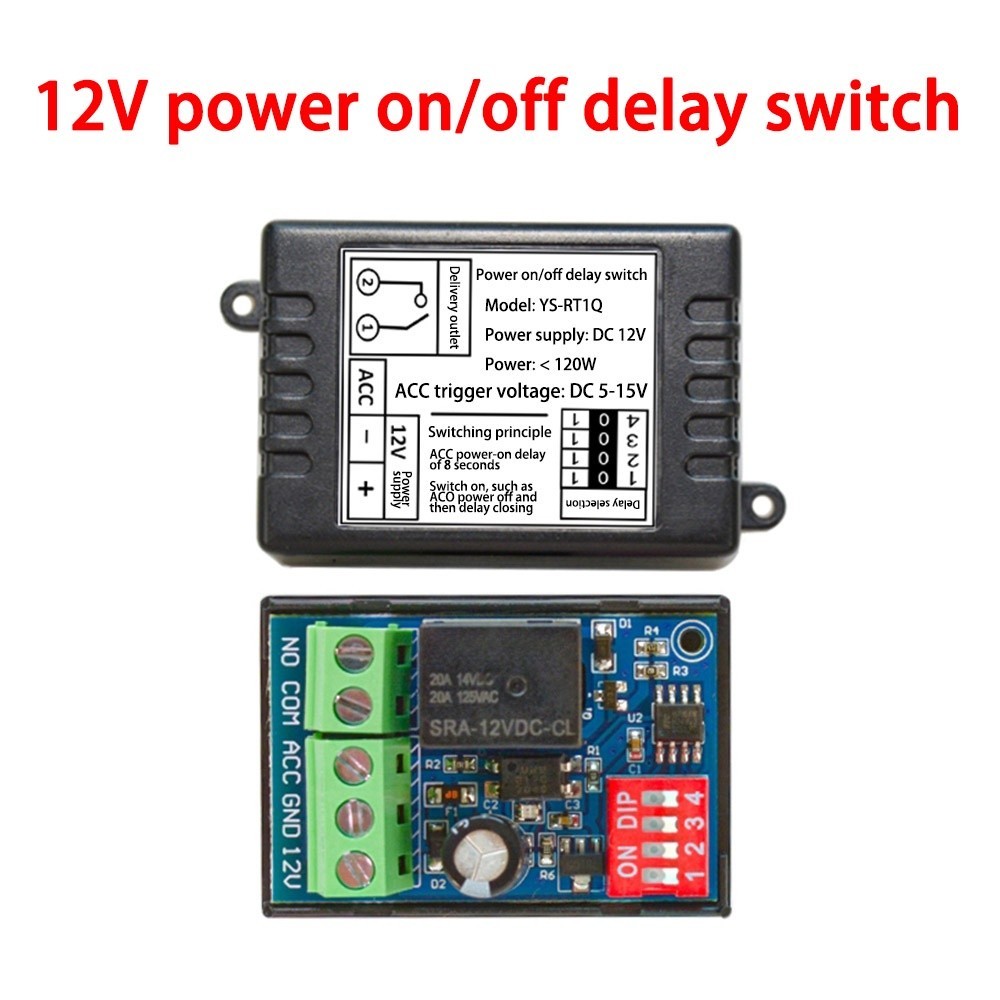

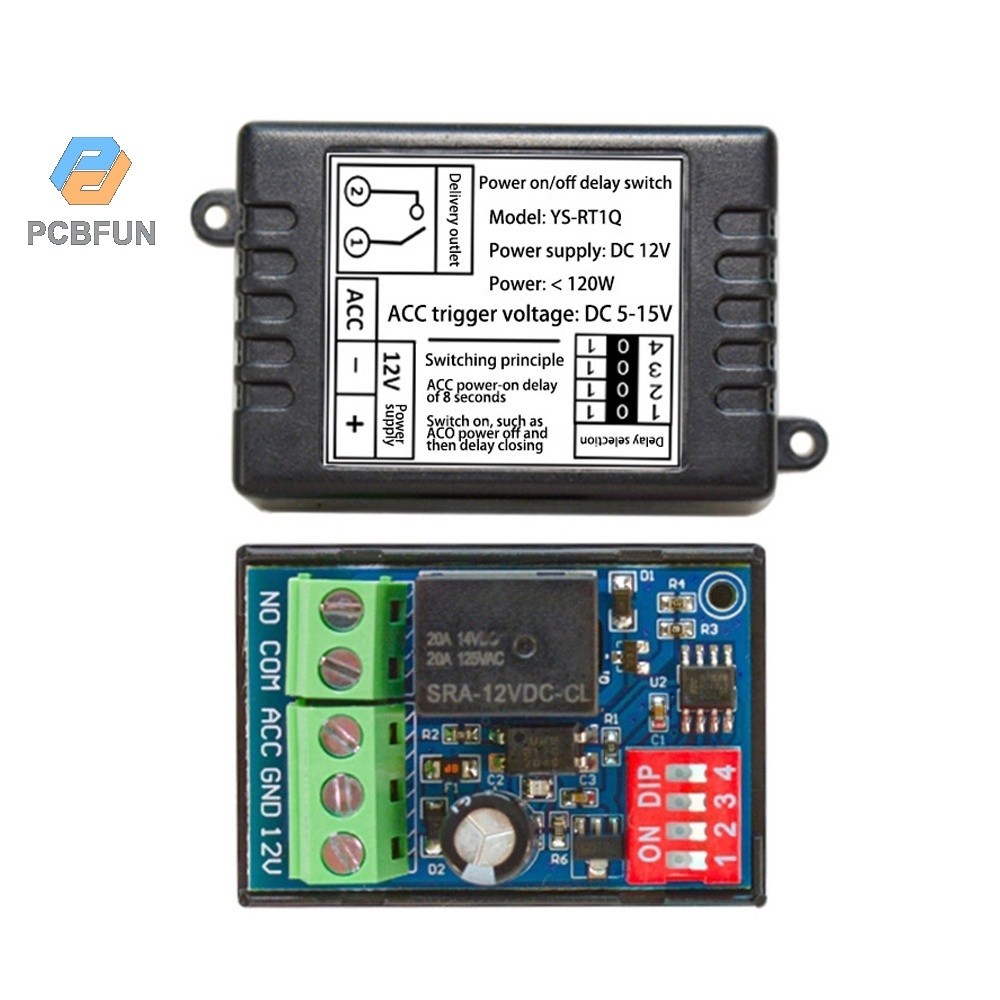

Name: Automotive power on/off delay switch
Model: YS-RT1Q
Shell with hole specification: 63 * 35 * 22mm
Bare board specification: 45 * 29 * 18mm
Power supply voltage: DC 12V
Standby current: ≤ 10ma
Working current: 68ma (current after the trigger switch is turned on)
Output control voltage: DC 0-14V, AC 0-125V
Output control current:
