Have Premium Universal 12V/24V 2" 52mm Ultra Thin Car Motorcycle Fuel Level Meter Gauge Electronic 8 LED Light Displa...

🔥 Fuel Level Meter Gauge: Stay Informed, Stay Safe

Features:

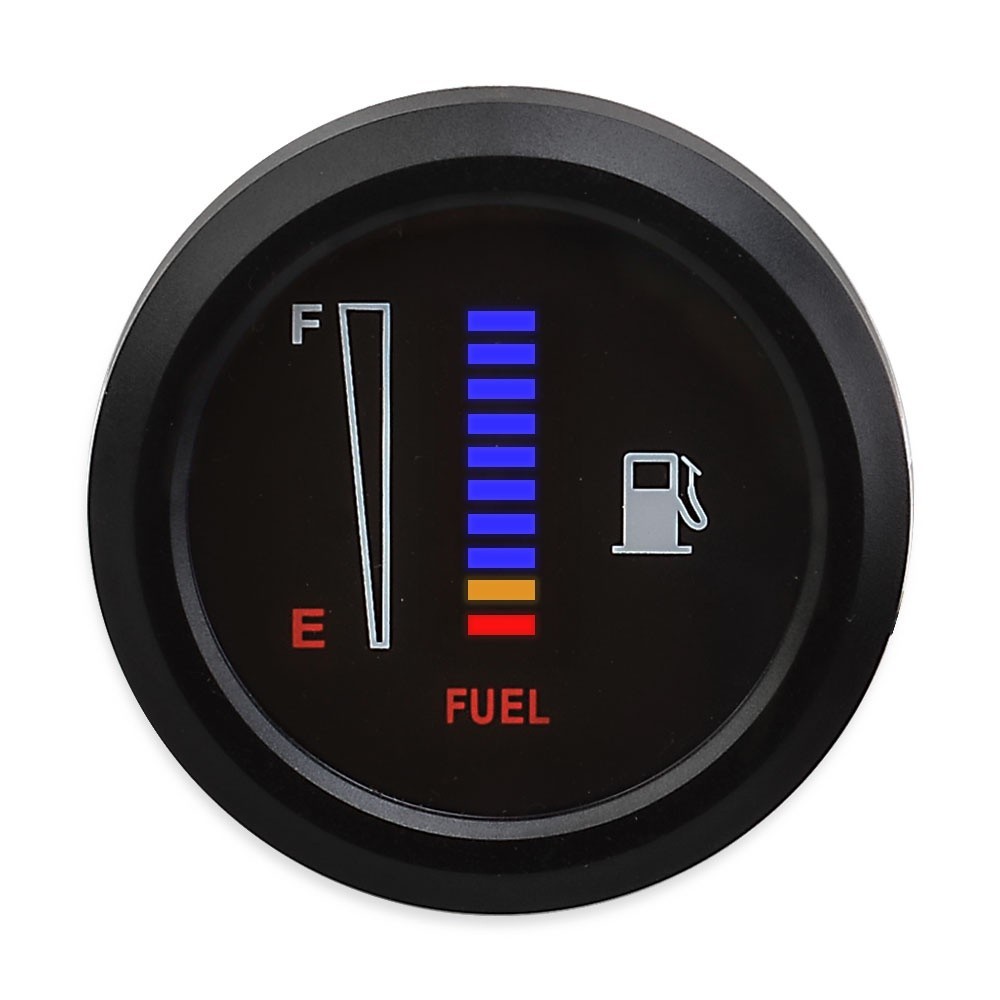

• LED Display: 8 Blue/Green LEDs, 1 Yellow LED, and 1 Red LED for clear fuel level indication
• Delay Function: Prevents LED flickering due to fuel sloshing during driving
• Visibility: Blue LEDs are clearly visible even in strong sunlight
• Compatibility: Works with vehicles where the fuel is full and resistance is small, or fuel is running out and resistance is large

Specifications:

• Material: ABS
• LEDs: 10 LEDs (8 Blue, 1 Yellow, 1 Red)
• LED Colors: Blue/Green, Yellow, Red
• Voltage: DC 12/24V
• OHM Range: 98-8 ohms, 0-190 ohms, 565-33 ohms, 0-90 ohms
• Gauge Diameter: 52mm (2.06")
• Height: 18mm (0.7")
• Wire Length: 37cm (14.57")

Installation:

1. Connect the orange wire to the power positive
2. Connect the black wire to the power negative
3. Connect the yellow wire to the fuel tank sensor (do not connect to the original test wire for accuracy)

Important Notes:

• This product must be used with a compatible fuel capacity sensor (fuel float)
• Ensure your fuel float matches the resistance requirements for accurate readings
• Please allow 1-3mm error due to manual measurement
• Due to monitor differences, the actual color may vary slightly from the image

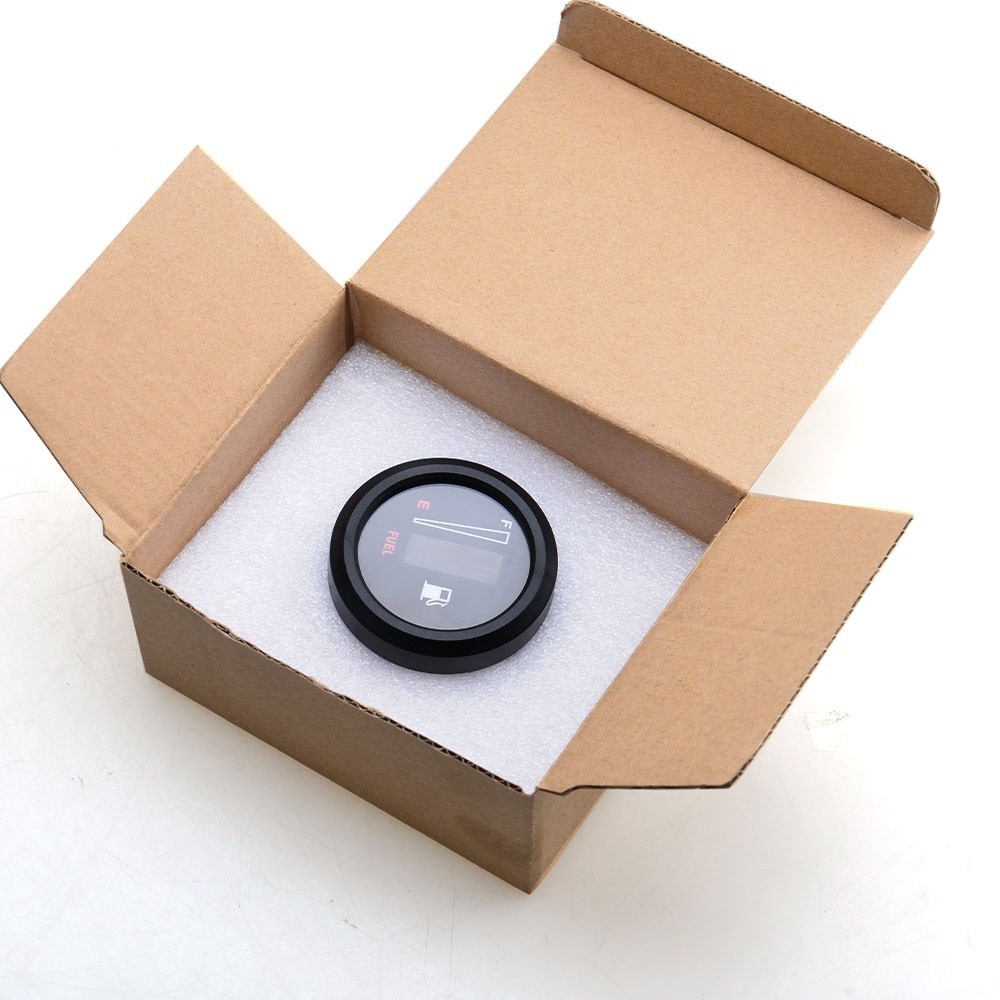

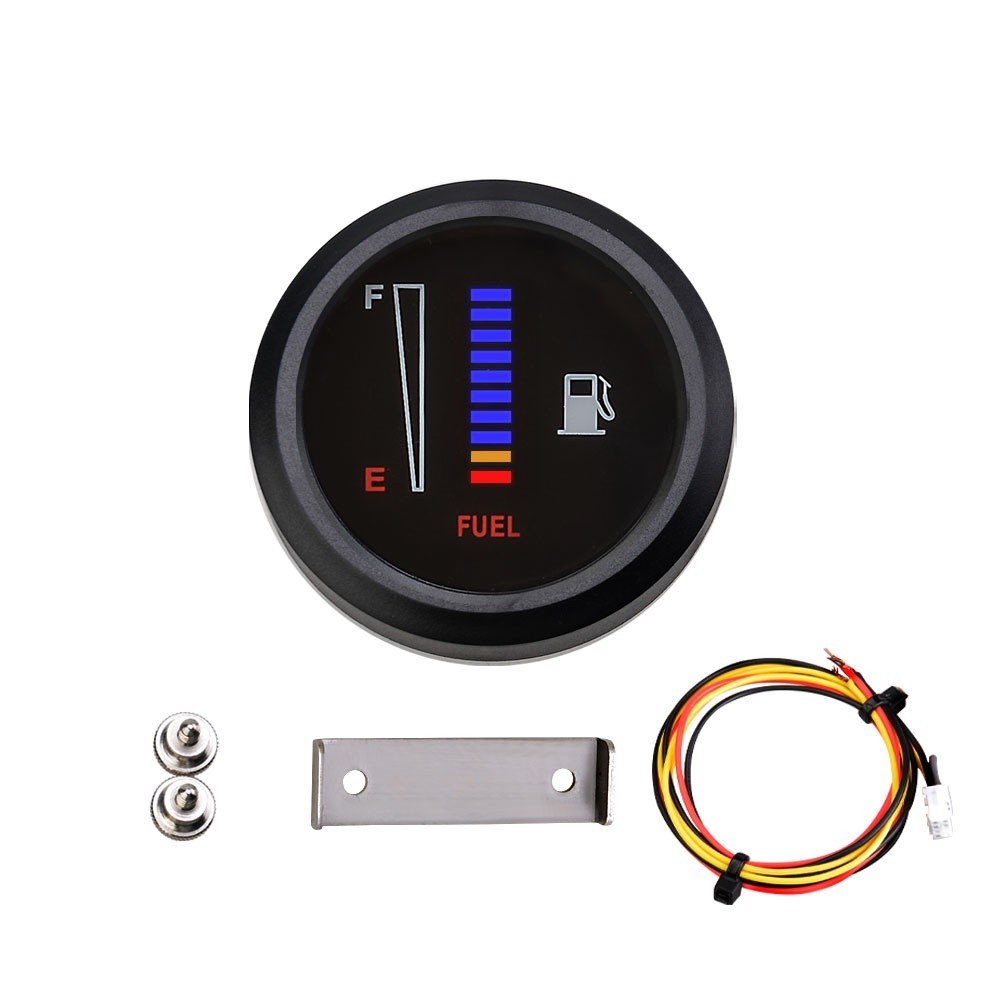

Package Includes:

• 1 x Fuel Level Meter Gauge

Product Care Instructions:

• Avoid exposing the gauge to extreme temperatures or moisture
• Clean with a soft, dry cloth to maintain the finish
• Periodically check connections for any loose wires to ensure accurate readings
