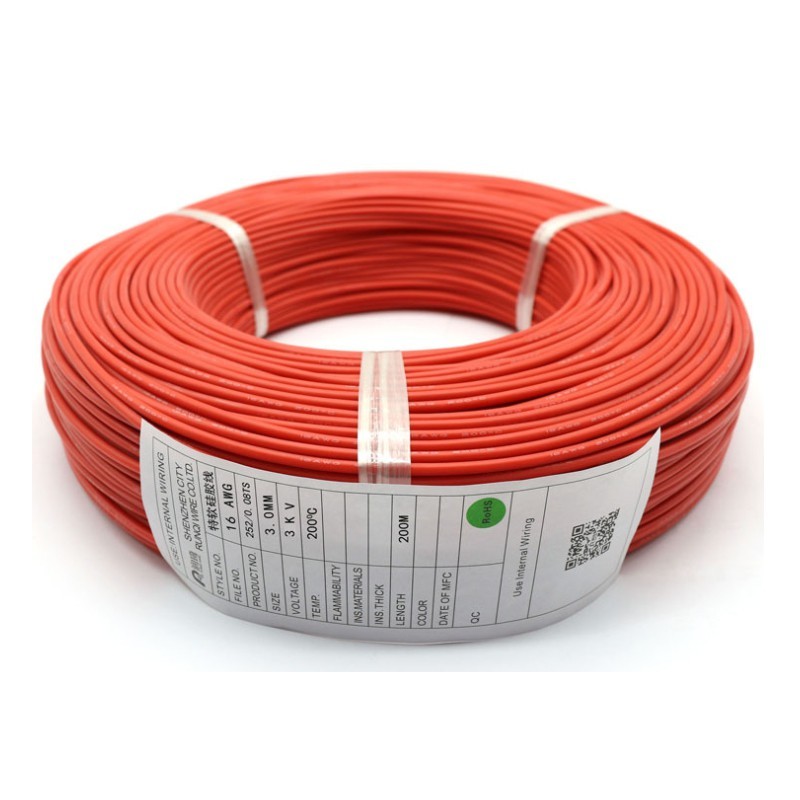

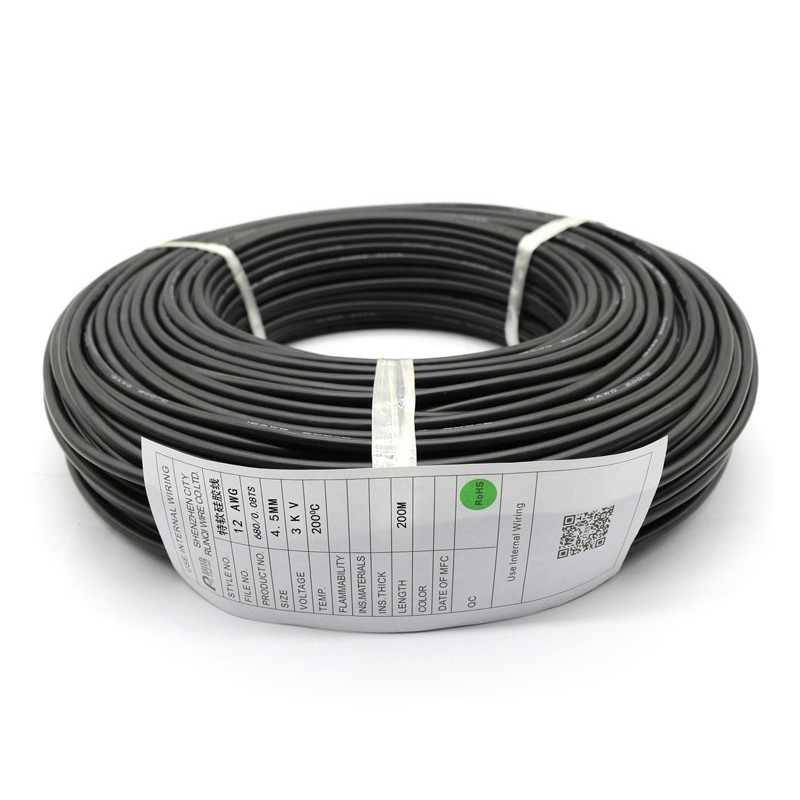

Premium Have 1meter AWG 16 18 20 22 24 26 28AWG Flexible Silicone Solid electronic wire Tinned Copper line airplane m...

🔥 Special Soft High Temperature Silicone Wire 🚀 Your Ultimate Solution for High-Performance Electrical Connections!

Features:

• Highly flexible and durable, suitable for a wide range of applications.
• Core material: Tinned copper wire for excellent conductivity.
• Sheath material: Silicone rubber for superior insulation and temperature resistance.
• Test voltage: 2000V for enhanced safety.
• Normal voltage: 300V/600V for reliable performance.
• Available in various AWG sizes to meet different requirements.
• Temperature range: -60°C to +200°C for use in extreme conditions.
• Colors: Black and red for easy identification.

Specifications:

• AWG 16
  • Normal current: 42.43A
  • Core: 252 shares
  • Outer diameter: 3.0mm
• AWG 18
  • Normal current: 24.48A
  • Core: 150 shares
  • Outer diameter: 2.3mm
• AWG 20
  • Normal current: 16.32A
  • Core: 100 shares
  • Outer diameter: 1.80mm
• AWG 22
  • Normal current: 9.79A
  • Core: 60 shares
  • Outer diameter: 1.70mm
• AWG 24
  • Normal current: 6.53A
  • Core: 40 shares
  • Outer diameter: 1.60mm
• AWG 26
  • Normal current: 4.9A
  • Core: 30 shares
  • Outer diameter: 1.50mm
• AWG 28
  • Normal current: 2.63A
  • Core: 16 shares
  • Outer diameter: 1.30mm

Usage Instructions:

1. Ensure the wire is used within the specified temperature and voltage range.

2. Strip the end of the wire to the required length using a wire stripper.

3. Connect the wire to your device or circuit using appropriate connectors or soldering.

4. Inspect the wire regularly for any signs of damage or wear.

Package Includes:

• 100% Brand New
• 1 meter of silicone wire (available in 10, 12, 14, 16, 18 AWG sizes)

Product Care Instructions:

• Avoid exposure to sharp objects and excessive bending.
• Store in a cool, dry place away from direct sunlight.
• Do not exceed the maximum operating temperature.
